FCF

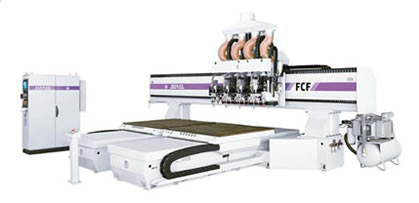

CNC machining centre, FCF model
Description
Additional information Main applications Technical specifications Description
Computerized Numerically Controlled Machining Centre (CNC) prepared for large productions. Optionally, two moveable tables are available to allow an uninterrupted production. It mainly produces small or medium parts on wood, derived products and resins. Its main users are furniture manufacturers (classical, kitchen and bathroom furniture), manufacturers of modular parts and professionals of the funeral industry.
The FCF machine is designed for situations which require a high level of accuracy, quality and cost-effectivenes. The features of this machine make it ideal for working on large pieces. When two working tables are available, they can be programmed so that they operate separately, thus increasing the production, or so that both operate at the same time on large pieces.
Possibility of adapting optional aggregates to carry out all types of machining processes.
This model is extremely adaptable to customer's requirements. One can select from a large number of possibilities in order to obtain the most suitable machine:
-FCF machine with one working area and several heads
-FCF machine with two working areas and sevearl heads. Ideal for large scale productions. It offers the possibility of working simulataneouly on large parts.
-Revolutionary system for the funeral industry: coffin machining in one single run with high quality results and speed, thus permitting high production in minimum time.
Technical specifications
Machine prepared to be equipped with 3 to 5 controlled axes
Milling heads to work wood and its derived products
Automatic tool changer (optional)
C axis for aggregates (optional)
ISO 30 or HSK-F63 cone
Working table with different dimensions:
Length from 1.500 to 6.000 mm (2 tables)
Width from 1.500 to 3.000 mm
Working height of the Z axis from 300 to 400 mm
Vacuum pump
Automatic lubrication
Additional heads:
Multiple drilling head
Sawing head 0/45º 0/90º
Automatic screwdrivers
Fixed angular milling head or controlled by the CNC 360º
Aggregates:
straight sawing aggregate at 90º or tilting aggregate with different possibilites
straight milling aggregate at 90º or tilting aggregate with different possibilities
multiple drilling aggregate
|
|
|
|
